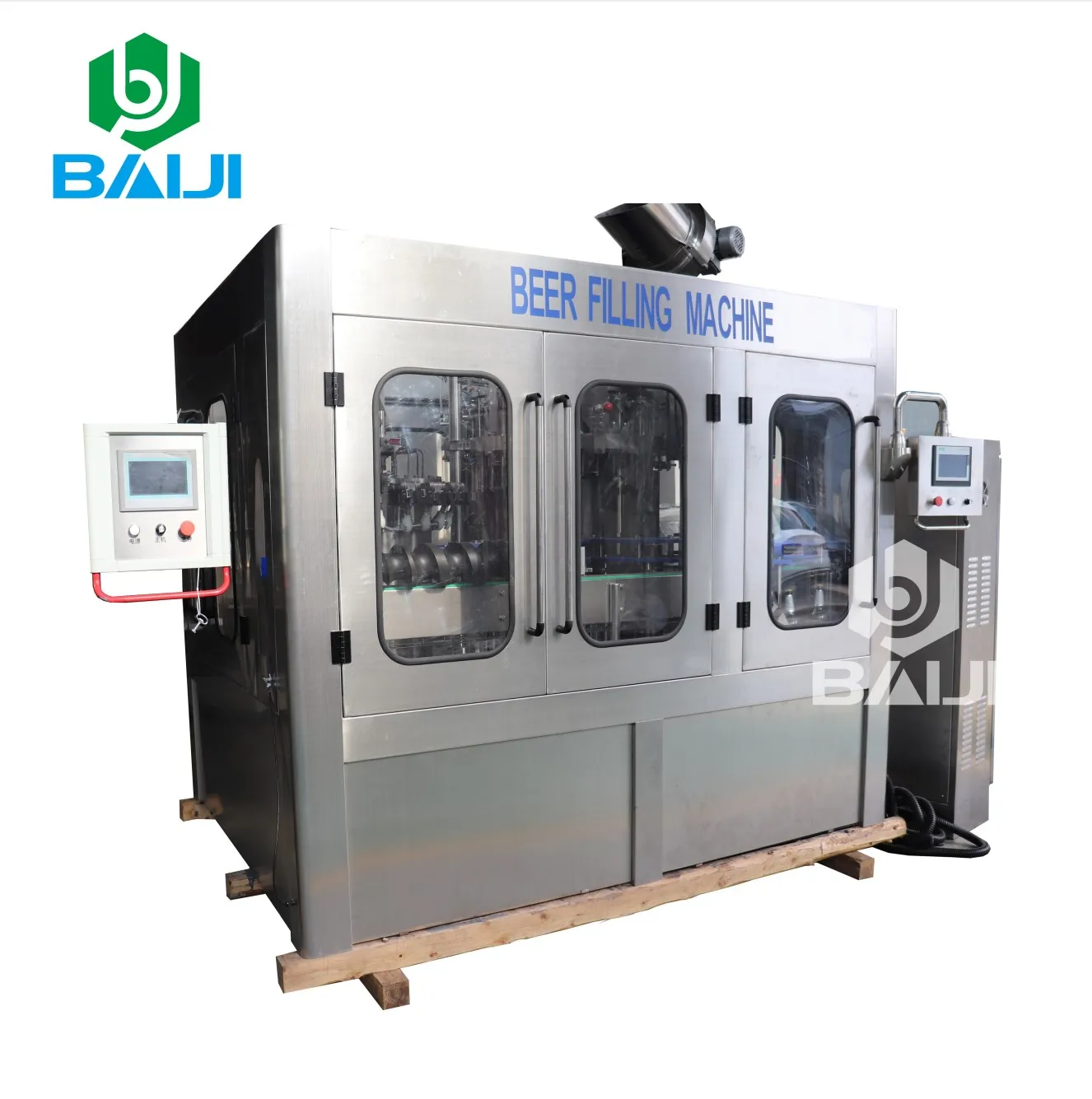

Automatic Glass bottle beer filling machine

FOB Reference Price:Get Latest Price
$4,800.00 - $52,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Bottles, Cans
Packaging Material:
Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380v or Customized
Power:
2.2KW
Place of Origin:
Jiangsu, China
Brand Name:
BAIJI
Model Number:
DGZ
Dimension(L*W*H):
2260*1260*1900mm
Weight:
3500KG
Certification:
CE ISO
Name:
Automatic Glass bottle beer filling machine
Bottle type:
Glass Botte
Function:
Bottle Washing Filling Capping
Material:
Stainless Steel
Capacity:
5000BPH (based on 500ml )
Warranty:
1year
Filling material:
beer or carbonated drink
control:
PLC & touch screen
Usage:
Beverage Packaging
Color:
Silvery White
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
wood case
Port
Shanghai
Lead Time :
About 35-40 working days after receiving the deposit
Product Description

 Automatic Glass bottle beer filling machine



Features:

1.Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

2.Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

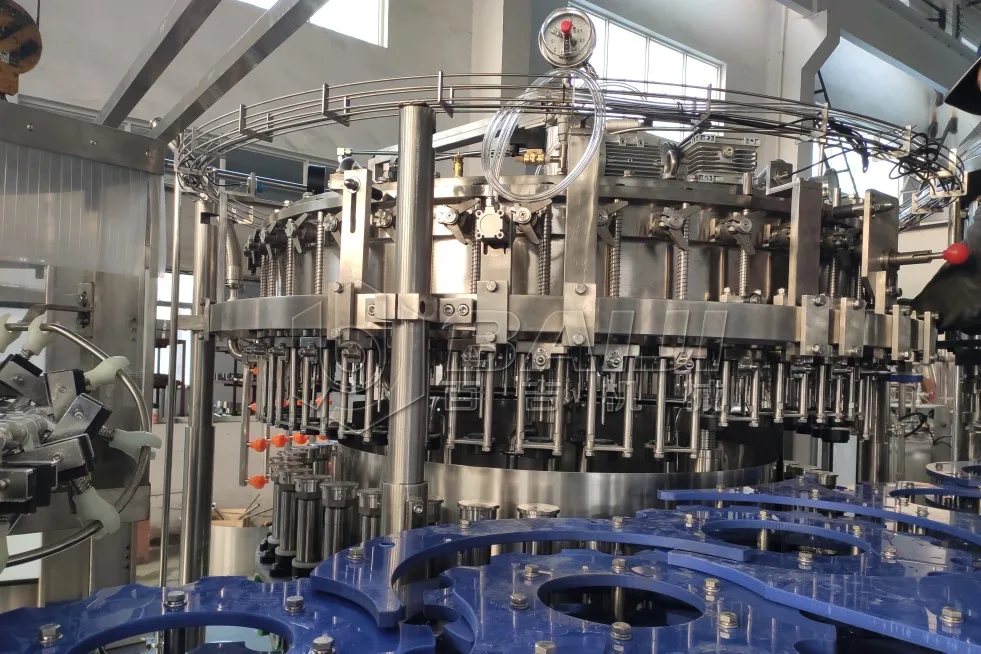

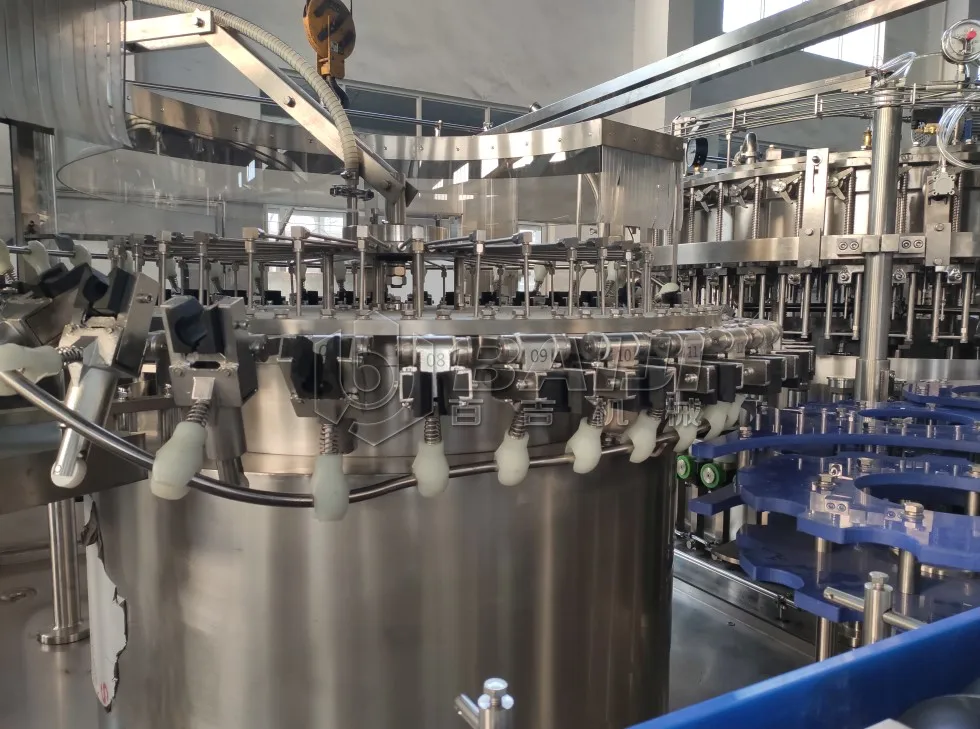

3.Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

4.High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.

5.Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.

6.Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality   stainless steel, it is sanitation. Operation and maintenance is convenient.

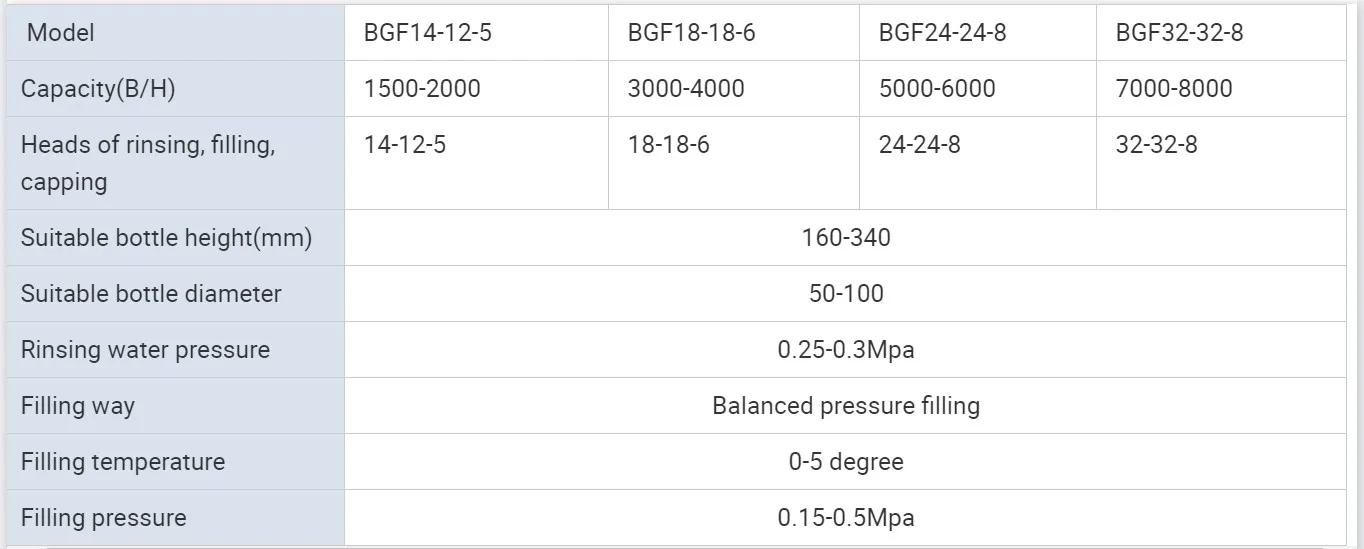

Main technical parameters:

Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

DGZ14-12-5

14

12

5

2000-3000bph

2.2KW

2500x1700x2500

DGZ18-18-6

18

18

6

4000-6000bph

3.5KW

2800x1900x2650

DGZ24-24-8

24

24

8

7000-8000bph

4.5KW

3000x2100x2650

DGZ32-32-10

32

32

8

8000-12000bph

5.5KW

3500x2500x2650

DGZ40-40-10

40

40

10

12000-15000bph

5.5KW

4000x1800x2650

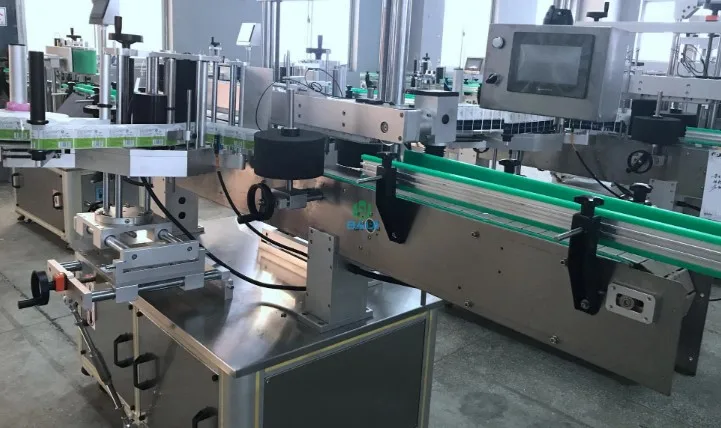

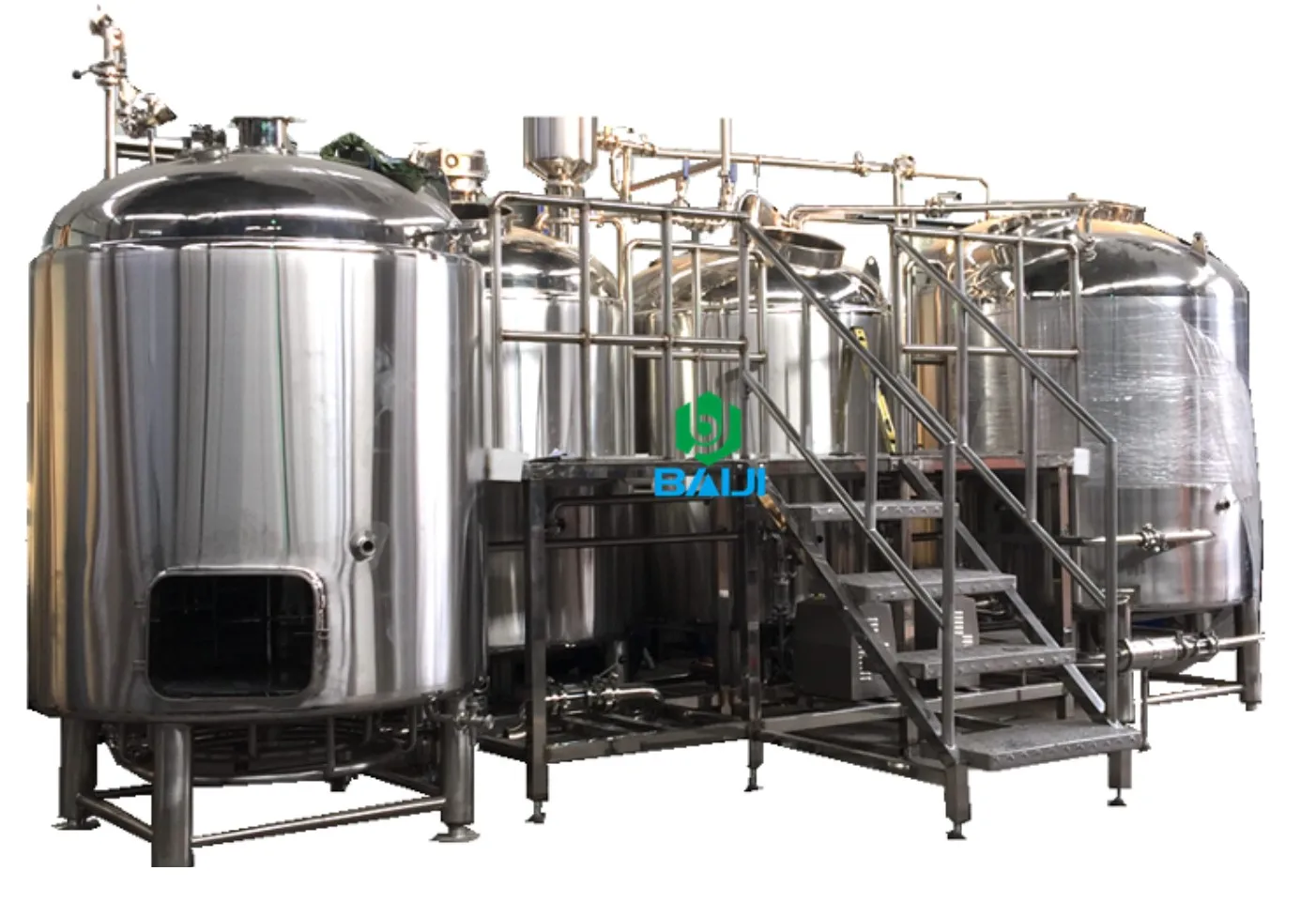

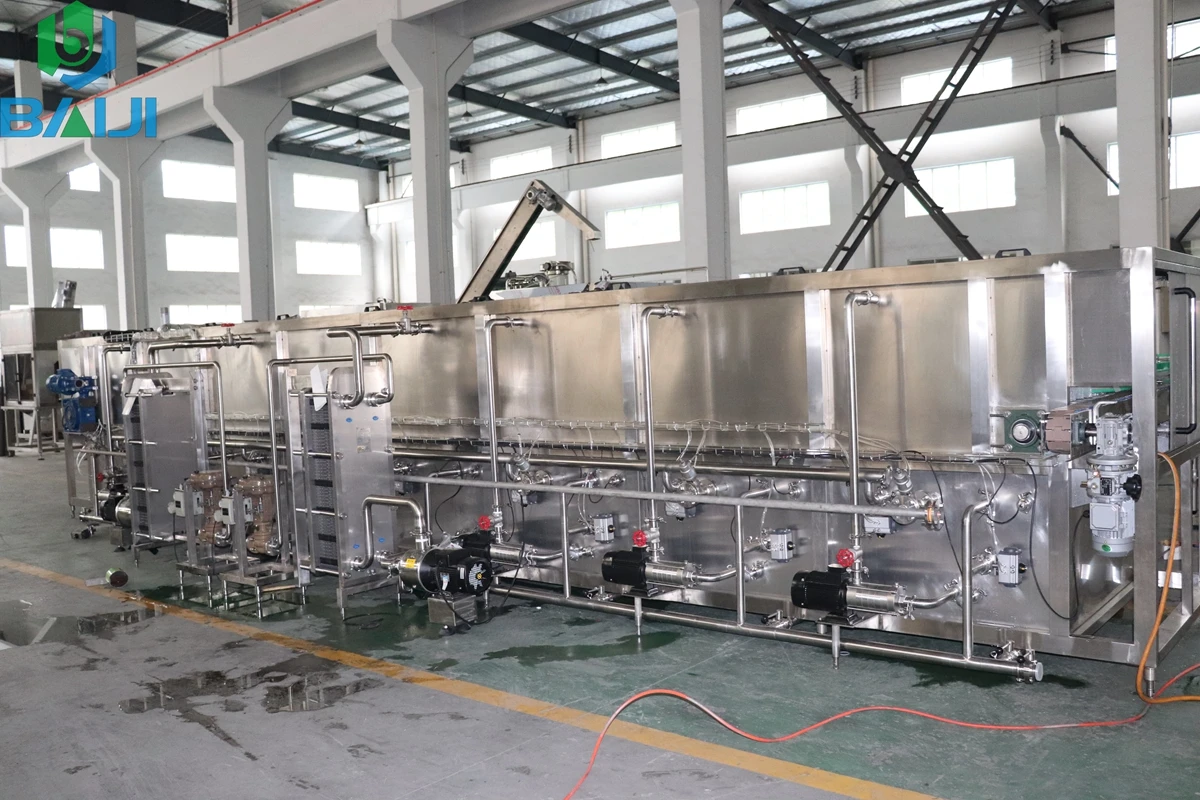

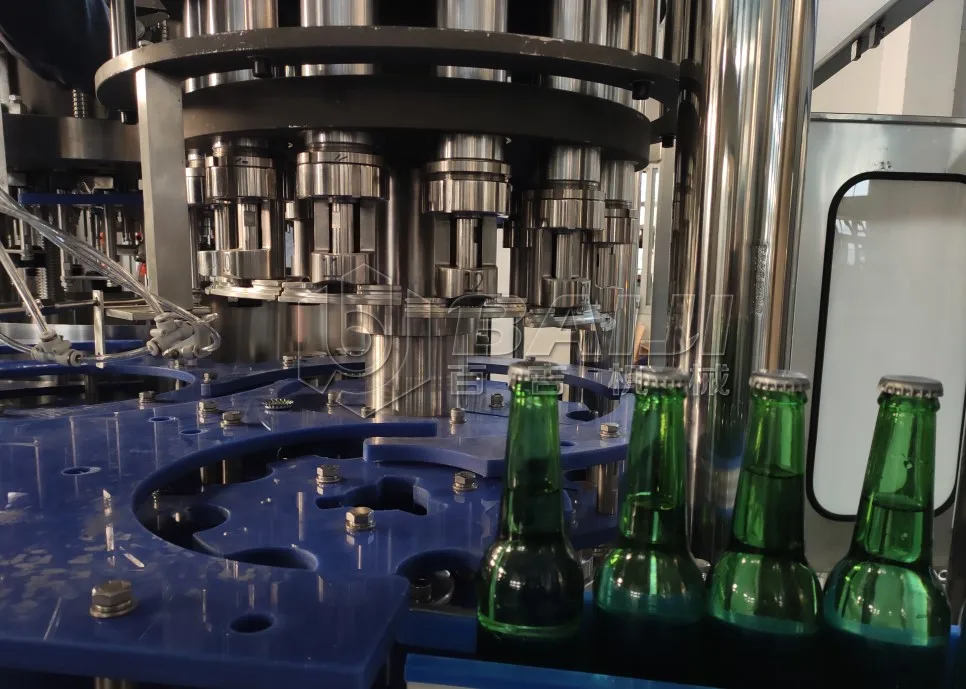

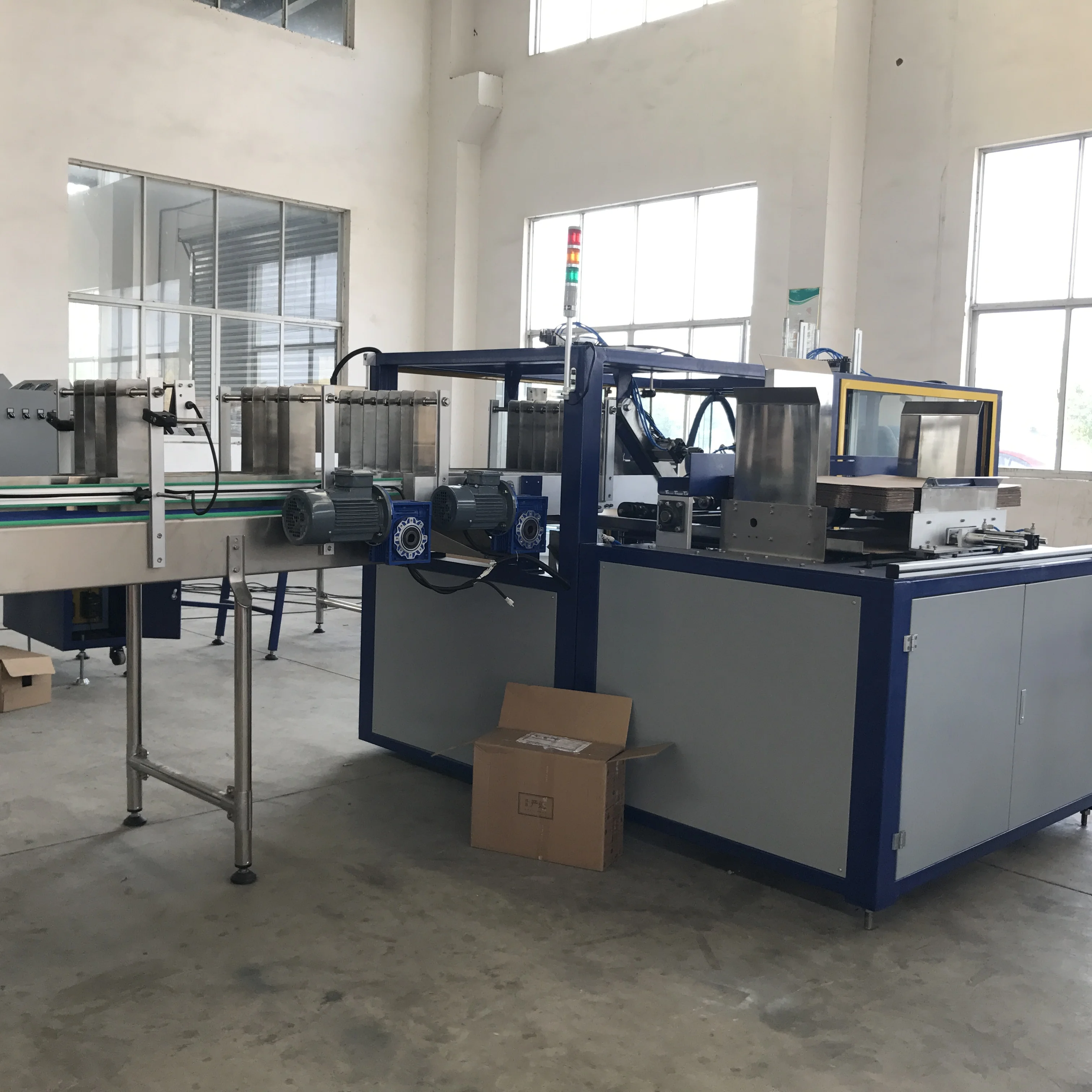

Pictures for reference:
