Proposal for RO water treatment and pure spring water bottling plant project

FOB Reference Price:Get Latest Price
US $9,800-54,000 / Sets | 1 Set/Sets pure water bottling plant (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380
Power:
5.2KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BAIJI
Model Number:
CGF12-12-4B-caa3
Dimension(L*W*H):
2180*1560*2300
Weight:
5T
Certification:
CE Certificate, CE
After-sales Service Provided:
Engineers available to service machinery overseas
Bottle Type:
plastic bottles
main machine:
washing - filling - capping
Machine Material:
SUS304
Minimum Capacity:
2000bph
bottle labeling machine:
heat shrink sleeve labeling
Product Keywords:
pure water bottling plant
packaging:
film shrink wrapping machine
Warranty:
1 year
Supply Ability
Supply Ability:
5 Set/Sets per Month pure water bottling plant
Packaging & Delivery
Packaging Details
wooden case
Port
shanghai
Lead Time :
25~30 working days after receiving deposit
Video Description
Product Description
Proposal for RO water treatment and pure spring water bottling plant project

Product Application

Complete water production line includes raw water pump, sand filter, carbon filter, sodium ion exchanger, reverse osmosis system, ozone generator, bottle filling and packaging system and so on. It is specially designed for producing bottled water beverage.
Main equipments as below:
1. Water treatment system (quartz sand filter, active carbon filter, softner, RO system and so on)
2. Ozone generator sterilizer
3. Aseptic water storage tank
4. Auto bottle washing, filling and capping line
5. Labeling machine
6. Date of manufacture printer
7. Final products film packaging machine and so on.


Keywords:

RO water treatment and water bottling plant

Spring water bottling plant

Pure water bottling plant

Main Features

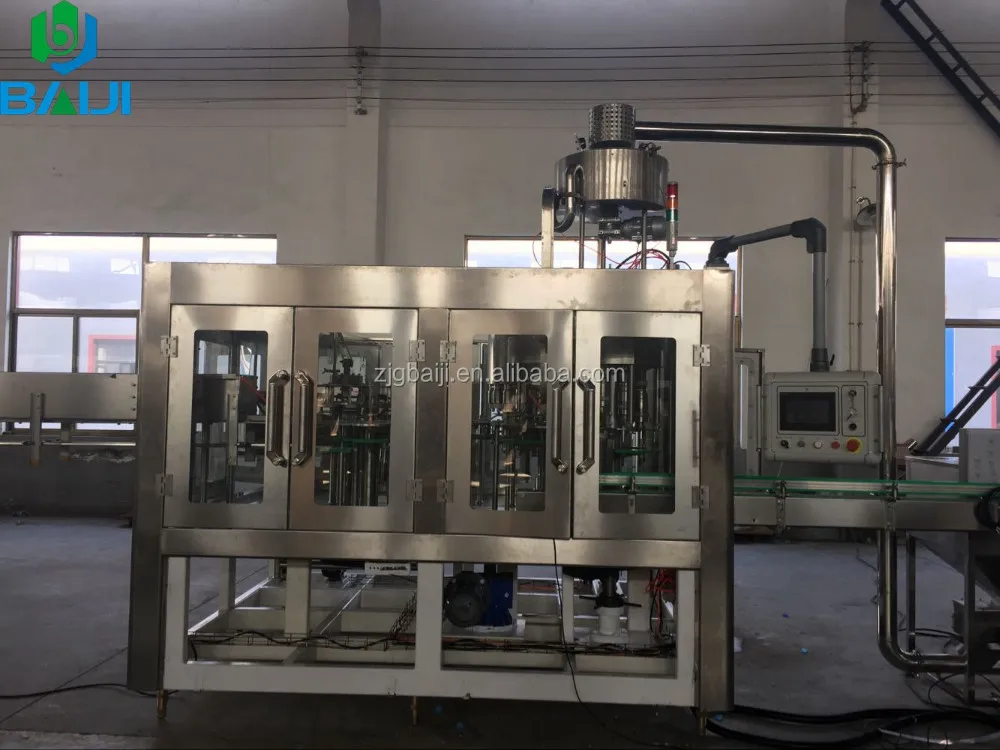

1. This filling water machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
2. The machine is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting
the height of the machine.
3. The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the
good external look and easy washing.
4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,
Stainless steel 316 is also available.

Main technical parameters:
Model
CGF8-8-3
CGF12-12-6
CGF18-18-6
CGF24-24-8
Washing, filling and capping heads No.
8-8-3
12-12-6
18-18-6
24-24-8
Capacity
1500-2000bph
3000-3500BPH
4000-5000BPH
7000-7500BPH
Bottle volume range
Volume = 250-2000ml, Dia. =50-110, H=150-340mm
motor power (Kw)
1.9kw
3.5kw
4.0kw
4.8kw
Overall dimension
(mm)
1900*1420*2000
2450*1800*2400
2650*1900*2400
2900*2100*2400
Weight (KG)
1500
2500
3500
4500
Model
CGF32-32-10
CGF40-40-12
CGF50-50-15
CGF60-60-15
Washing, filling and capping heads No.
32-32-10
40-40-12
50-50-15
60-60-15
Capacity
8000-10000
10000-12000
12000-15000
15000-18000
Bottle volume range
Volume = 250-2000ml, Dia. =50-110, H=150-340mm
motor power (Kw)
7.6
8.3
9.6
15
Overall dimension
(mm)
4100*2000*2400
4500*2650*2400
5450*3210*2400
5500*3150*2400
Weight (KG)
6500
8500
9800
12000
Machine flow chart
Detailed Images

Machine Parts

Name: Bottle feeder

Brand: Baiji

Original: China

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

Main Features

Name: washing part
Brand: Baiji
Original: China
Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

Machine Parts

Name: Filling parts
Brand: Baiji
Original: China
High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

Main Features

Name: Capping parts
Brand: Baiji
Original: China
Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Certifications
Our Company

About us

Zhangjiagang Baiji Machinery CO., Ltd is a company which has specifically manufactured beverage machine for mare than 10 years. Our company holds the right of independent import & export, and enjoys a good reputation in national and aboard markets.Our company is specialized in manufacturing carbonated drink production line, mineral water filling labeling and packing machine, pure water filling production line, juice or tea drink hot filling production line, milk filling and packing production line, edible oil filling and capping machine, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
